描述

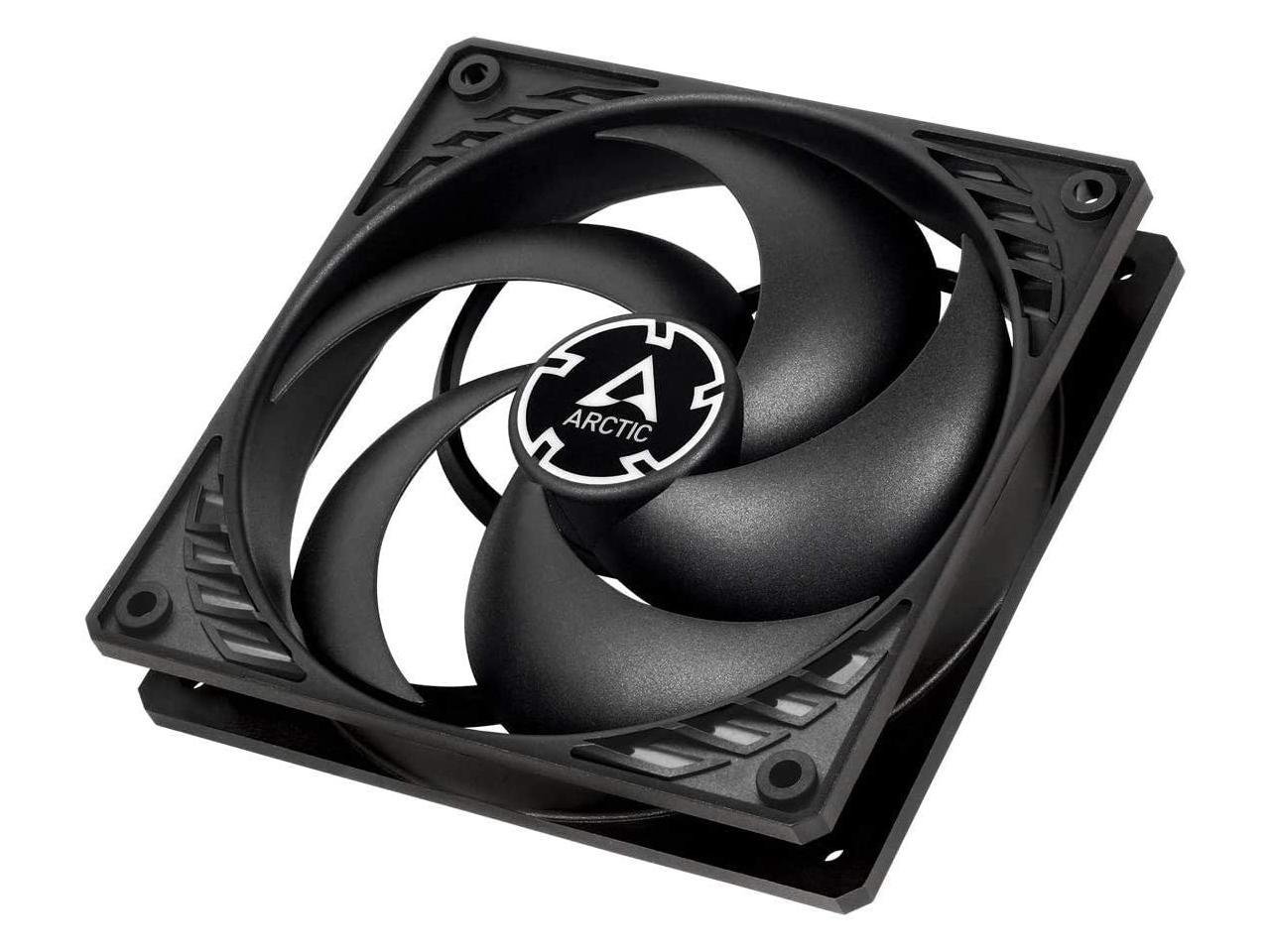

- The P12 PWM PST is a 120 mm fan with PWM PST connectors. It features Completely redesigned fan blades and is optimized for high static pressure.
- Thanks to this. it is especially effective when used on heatsinks and in situations with higher air resistance.
- The wide RPM range from 200 to 1800 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC PWM Sharing Technology (PST).
- The newly developed motor with a low coil temperature significantly increases the life span of the fan.
Performance
- Model: ACFAN00137A
- Fan: 120 mm. 200 – 1 800 RPM (Controlled by PWM). 0 dB fan mode below 5 % PWM
- Air Flow: 56.3 CFM / 95.65 m³/h
- Noise Level: 0.3 Sone (@ 1 800 RPM)
- Static Pressure: 2.2 mm H2O (@ 1 800 RPM)
Electrical Characteristics
- Typical Voltage: + 12 V DC
- Start-up Voltage: 3.9 V DC
- Cable Length: 400 mm
- Sub PST Cable Length: 50 mm
Connection
Motherboard:
- + 12 V DC
- PWM control signal
- 4-pin connector + 4-pin socket
